2-years Lithium
battery warranty
Bright display panel with
sharp and vibrant colors
Comfortable seat
cushion
2-years Lithium battery
warranty

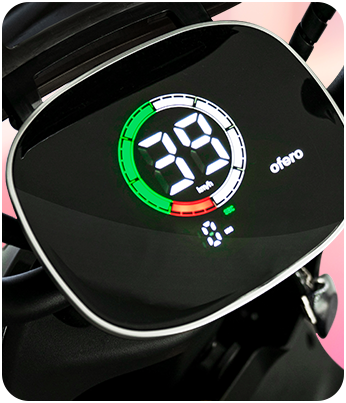

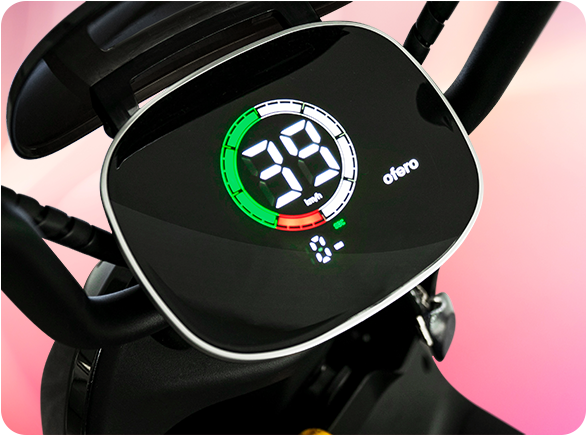

Bright display panel with
sharp and vibrant colors
Comfortable seat cushion
Lightweight, Durable,
Longer Range
1/3
lighter with Lithium
battery compared to
lead-acid battery
2X
more durable compared
to lead-acid battery
25%
increased in range using
Lithium battery compared
to lead-acid battery

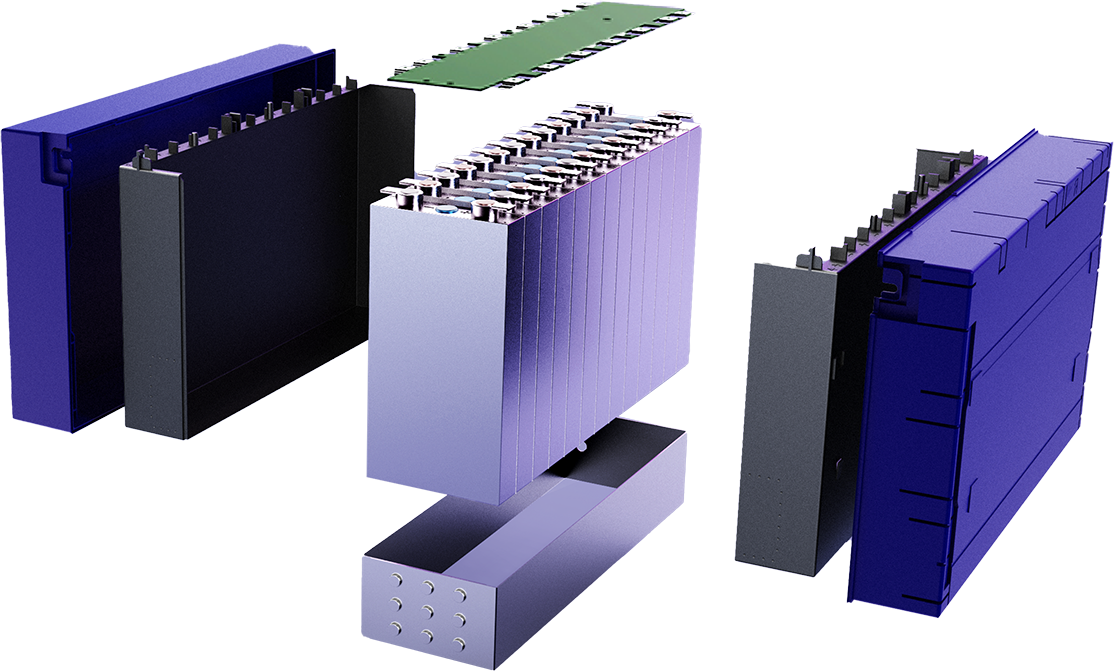

Phylion, World's No. 1 Lithium battery with a 2-years warranty

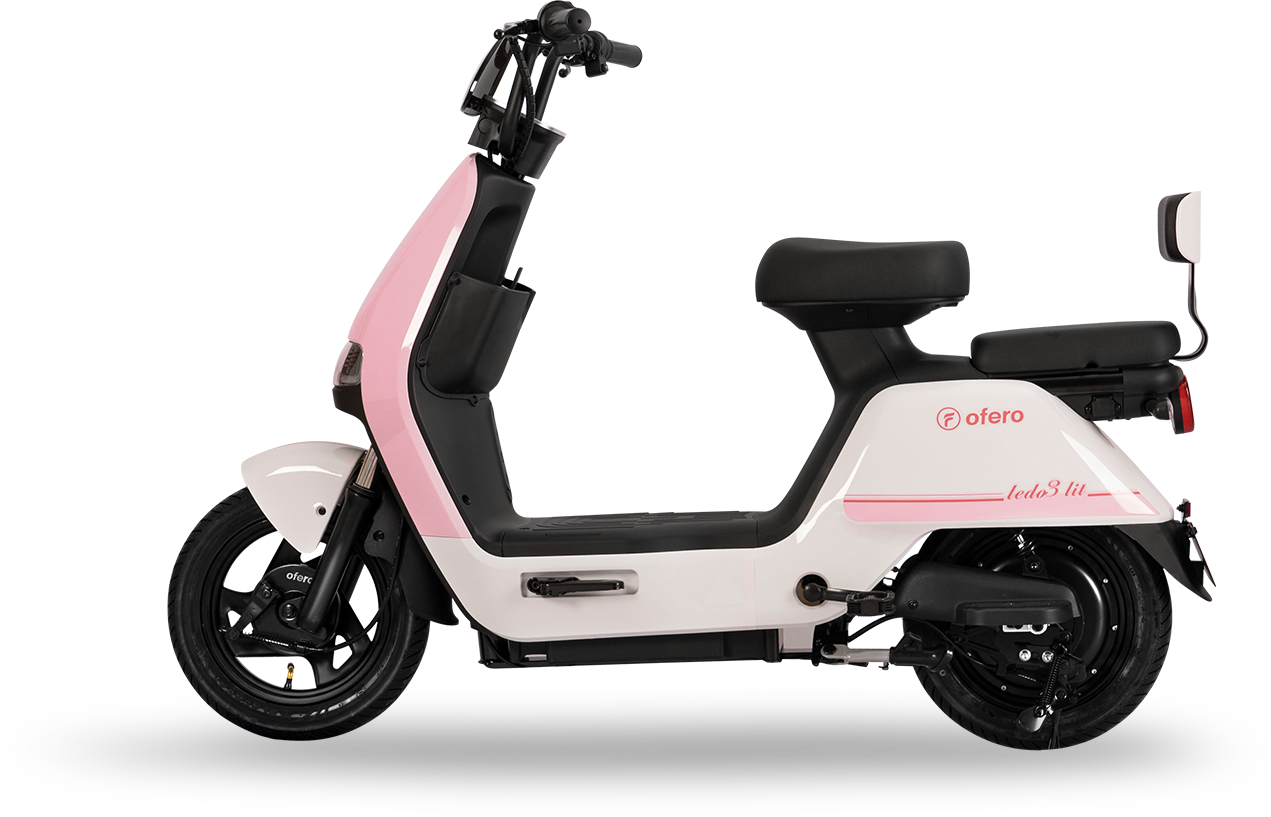

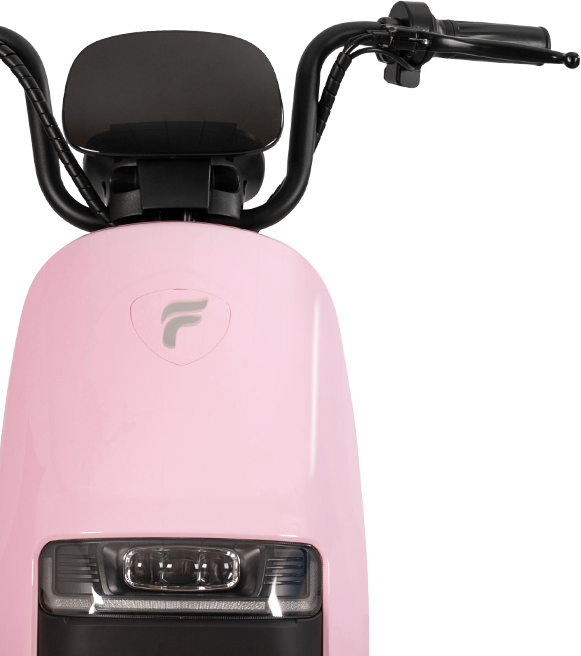

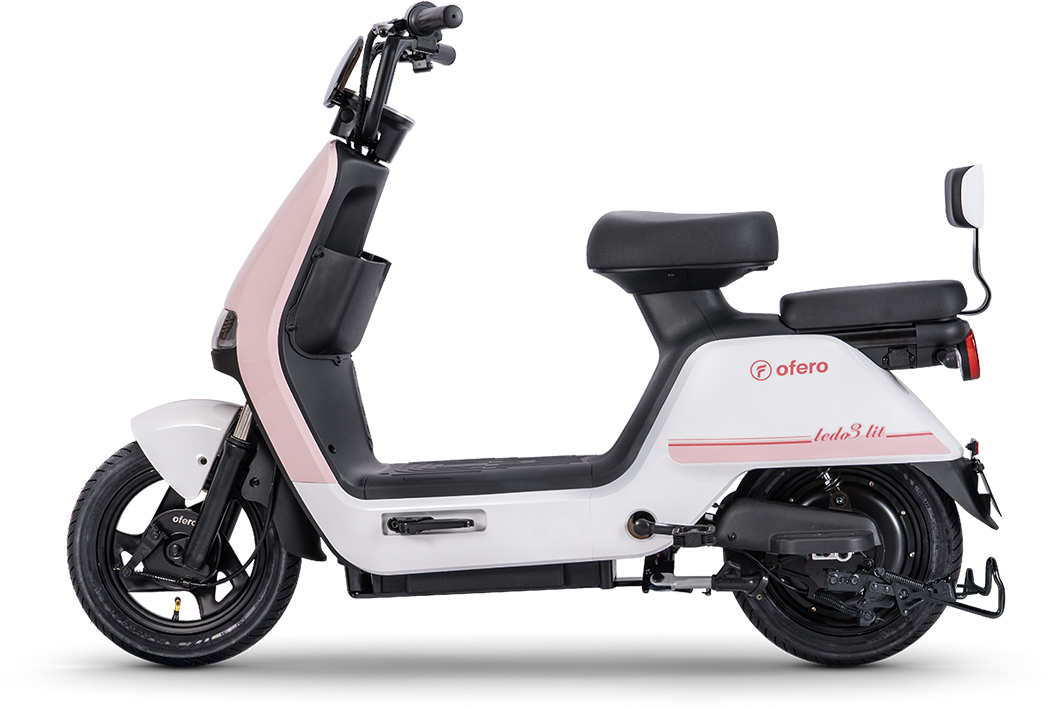

Compact design yet
sophisticated
Crafted with high-quality, anti-oxidation paint that resists fading, even after more than a year of usage.

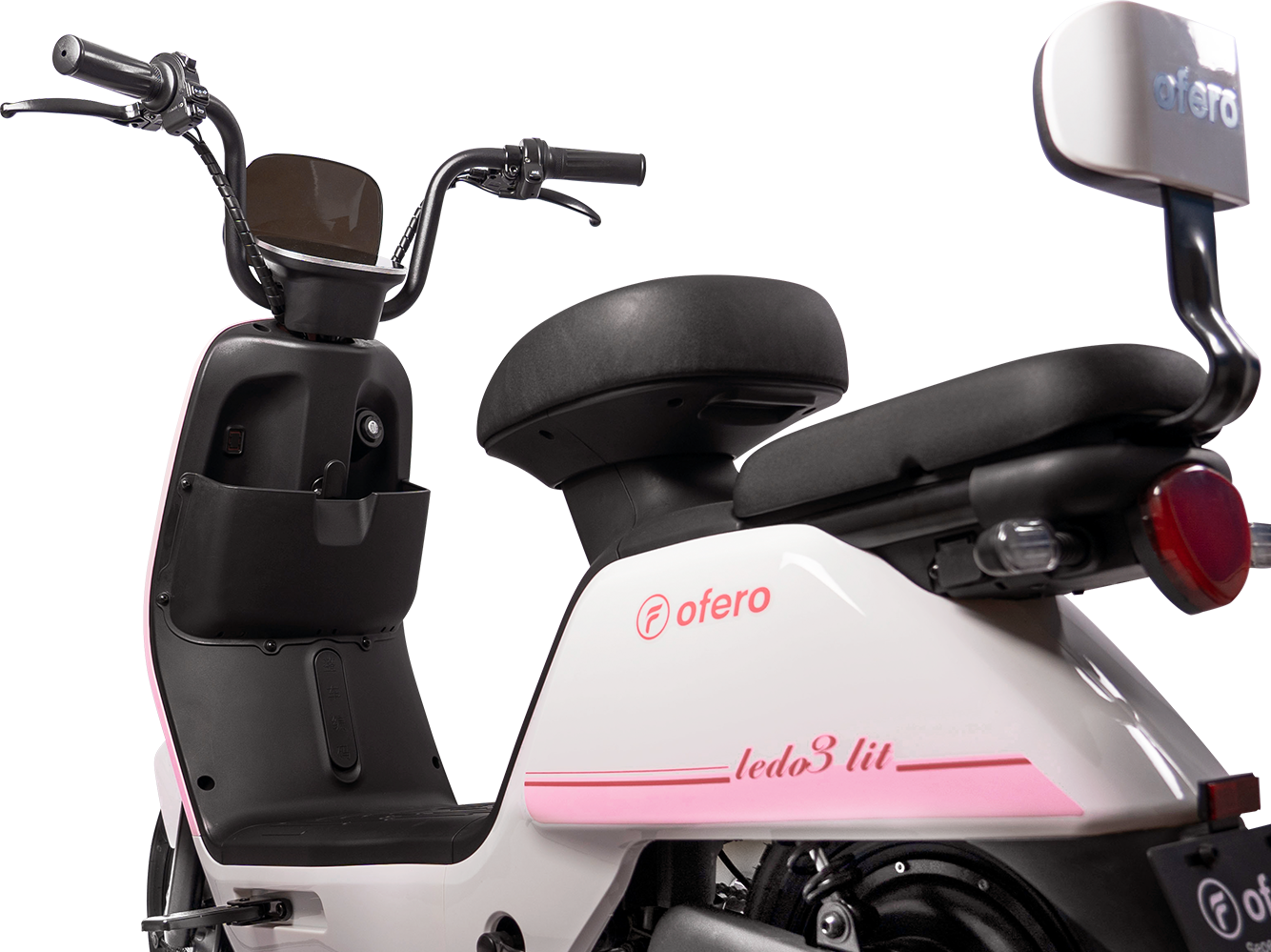

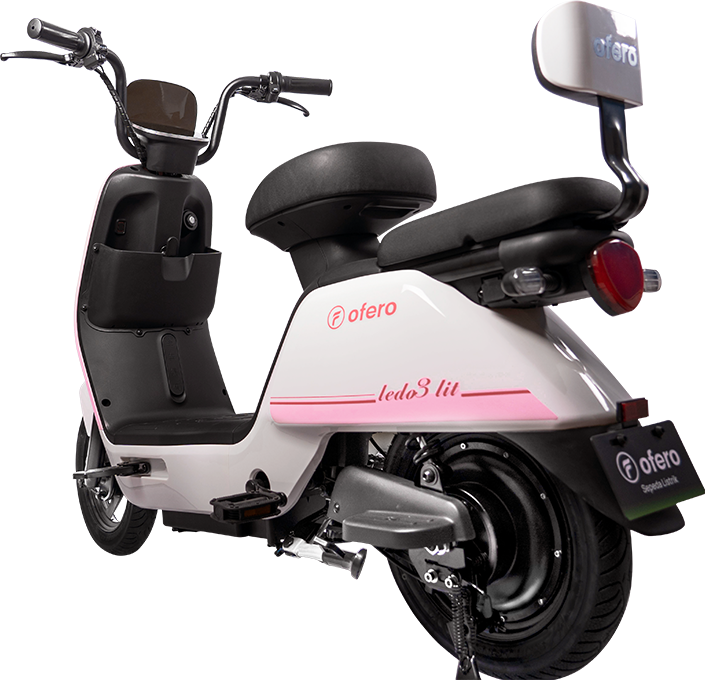

A larger, more comfortable and
safer
rear seat design enhances
passenger
comfort and feel
secure during the ride.
A seat height of 715mm is perfect for
user around 150cm tall, allowing
them to keep their feet comfortably
flat on the ground.
Equipped with renewable power system

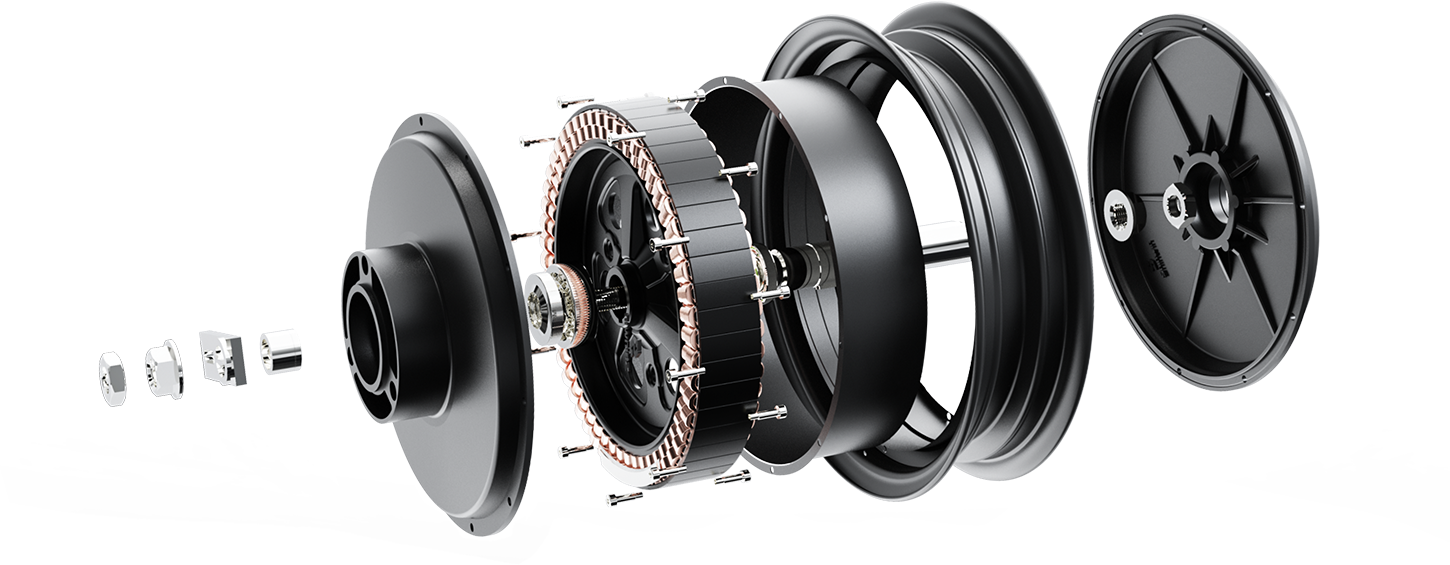

Motor with high-efficiency energy
The high-efficiency motor with an enhanced
18H steel magnet delivers up to 8% more
speed compared to the previous generation.
Motor
Power
500W
Efficiency
92%
steel magnet
18H
*There is a difference between the rendering of
the motor engine structure and the actual product

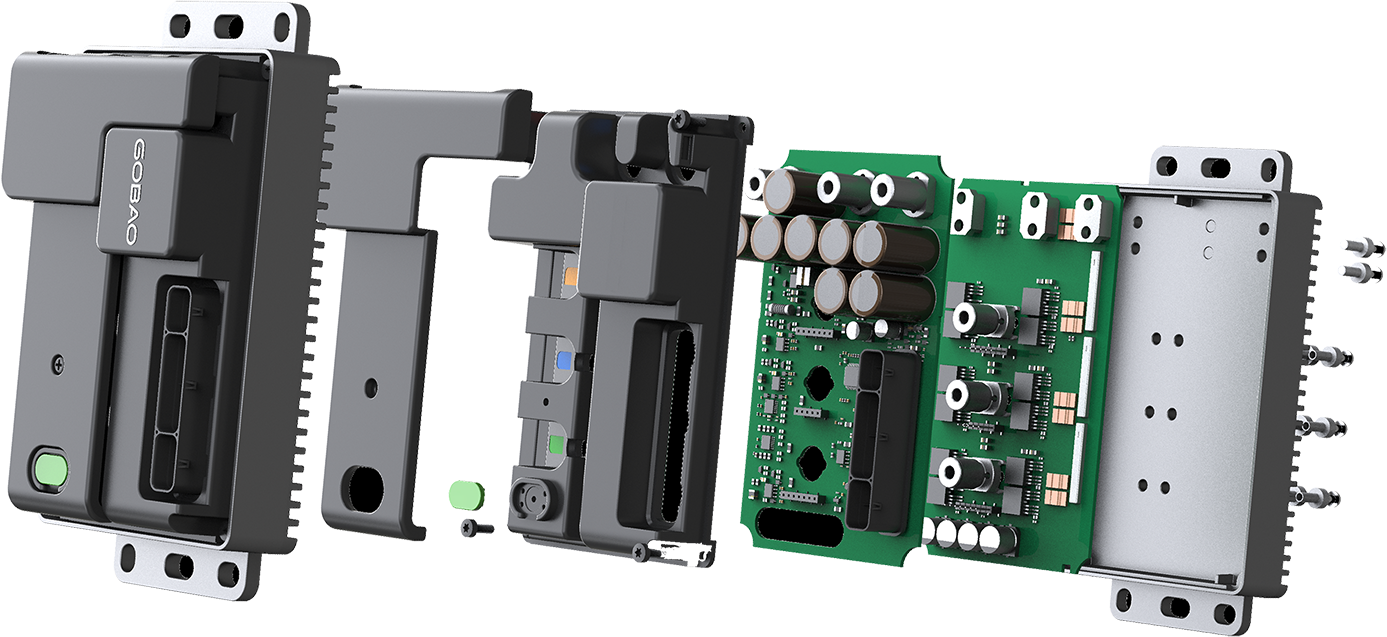

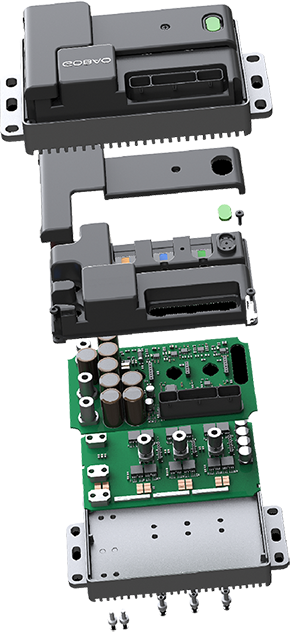

Equipped with a high-quality GOBAO
controller featuring an integrated
plug-in
design for easier disassembly,
while maintaining exceptional reliability.
The smart Lithium battery charger
boosts fast charging speed up
to 25%
compared to lead-acid battery

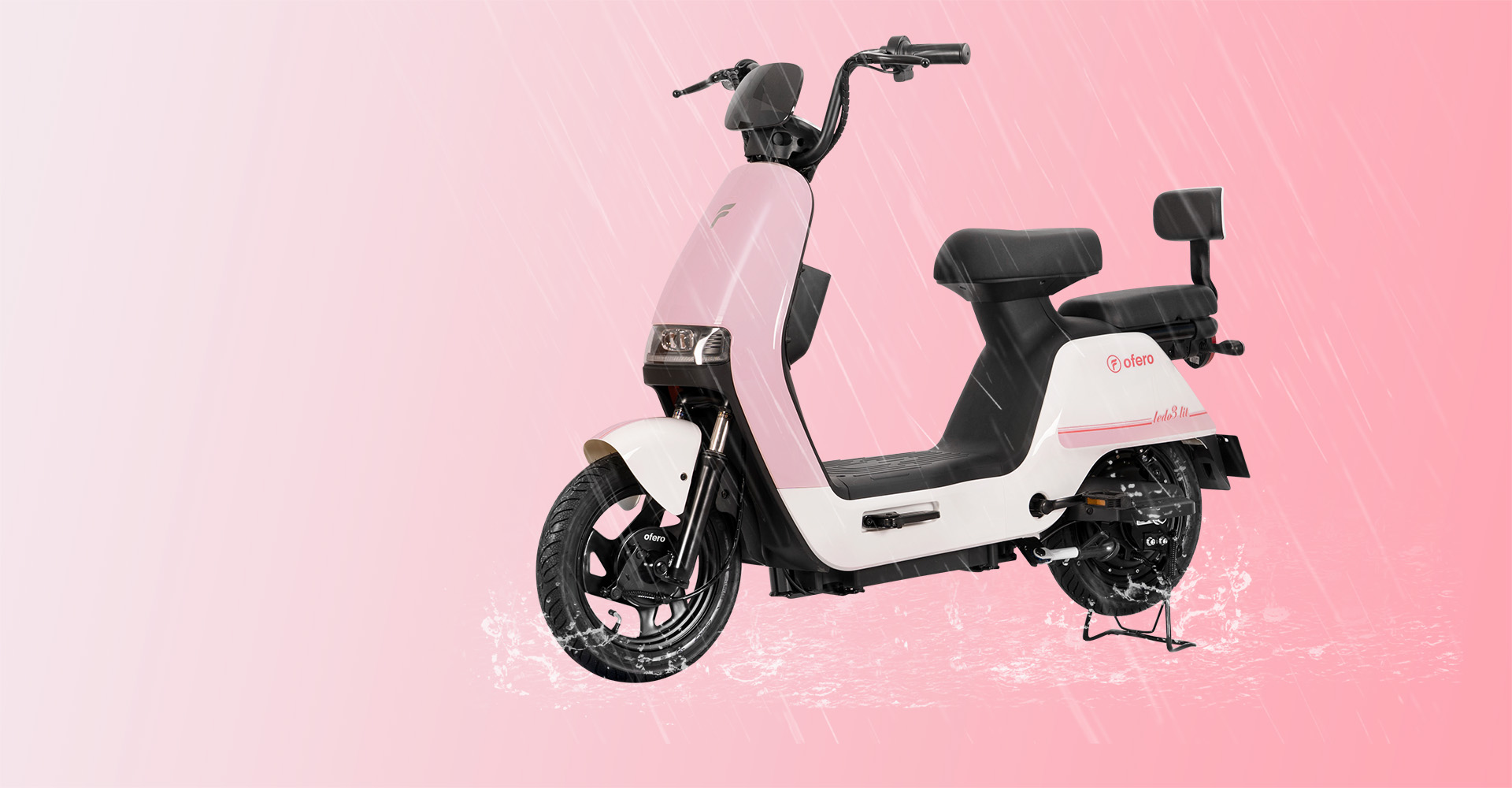

Enhanced waterproof
performance for greater
reliability

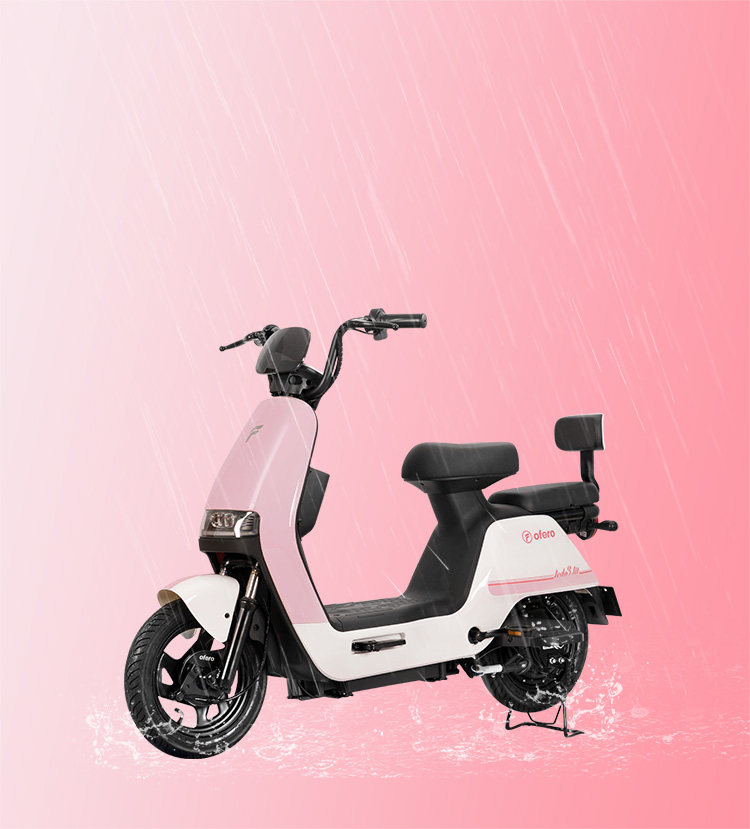

Enhanced waterproof performance
for the connectors, giving the vehicle
body an IPX5 certification and can be
safely used in rainy conditions.

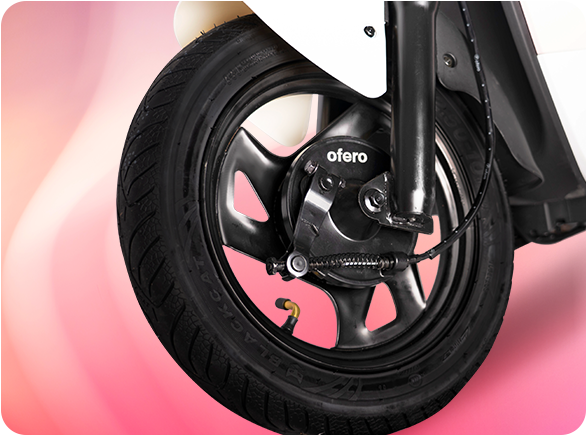

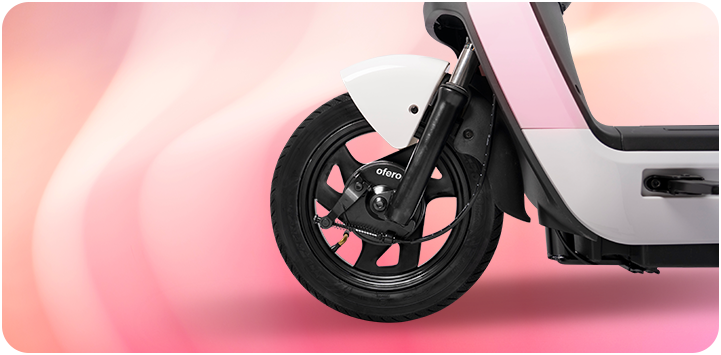

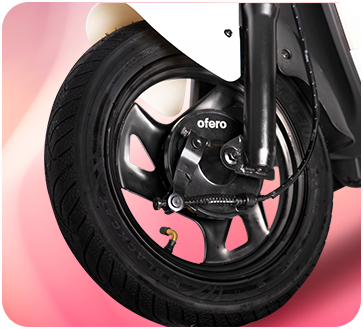

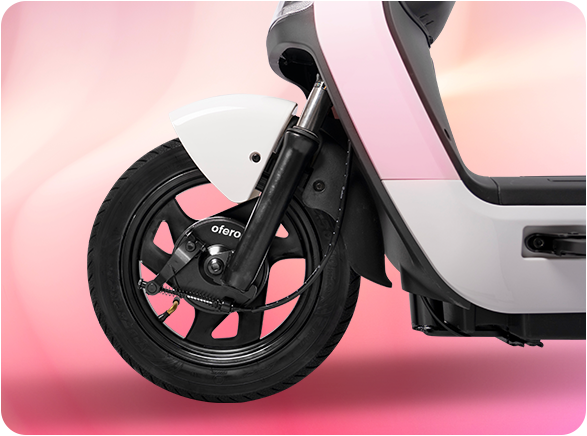

110 Drum brake coated with
aluminium
110 Drum brake coated with aluminium
Product Specification Table
| Basic Configuration | Specification/ Product Name | Ledo3-Lit |
| Overall Dimensions | 1510*700*1045mm | |
| Tires | 2.50-10 Tubeless Tire | |
| Suspension | Front 25-tube Hydraulic | |
| Front Brake | Front 110 Steel Drum Brake | |
| Rear Brake | Rear 110 Aluminum Drum Brake | |
| Seat Height | 715mm | |
| Seat Length | 230mm | |
| Footrest Length | 400mm | |
| Luggage Capacity | / | |
| Performance Configuration | Motor power | 500W(18H*1.6) |
| Battery | 48V12Ah Lithium Battery | |
| Controller | 6 Semiconductor | |
| Charger | 48V2A | |
| Speedometer Display | 38km/h | |
| Range* | 45km | |
| Smart Configuration | LCD Display | 7-inch High-definition Resolution |
| Anti-theft remote | √ |
*Test result data:
*The data was obtained from a test with a rider weighing 75 kg,
riding at a constant speed of 25 km/h with an ambient temperature
of 25°C. There may be differences between the test results and the
actual range, depending on the road conditions and terrain.
